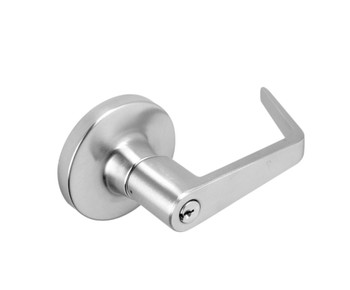

Falcon W511PD SRD - Grade 2 Commercial Entry / Office Lever Lock

(No reviews yet) Write a Review
SKU:
W511PD SRD
  • Falcon W511PD SRD - Grade 2 Commercial Entry / Office Lever Lock
  • Falcon W511PD SRD - Grade 2 Commercial Entry / Office Lever Lock
  • SRD ( Small Rose 2-9/16" Dane
SRQ ( Small Rose 2-9/16" Quantum
$85.75

Description


Falcon W511 Small Rose 2-9/16"- Grade 2 Commercial Entry / Office Lock

When you need a tough, commercial-grade lock that has a more residential look and feel the Falcon Y Series really does the job. With upgraded finishes these locks deliver style as well as strength. Ideal for apartments, rental properties, condominiums, hotels, military and government housing, and multi-family applications, the Y Series is also a good fit for narrow stile doors thanks to its smaller profile. Falcon Y Series locks and handlesets feature an interchangeable core that can be removed for quick, easy re-keying and are compatible with SFIC products from other manufacturers. They also feature a smaller rose that fits narrow stile doors, and the heavy duty cold-rolled steel is zinc plated and chromate coated for rust resistance. Interchangeable core cylinders are compatible with SFIC products from other manufacturers UL Listed latch standard.

Applications - For apartments, rental properties, condominiums and hotels / schools, colleges and universities / offices, retail stores and commercial businesses / hospitals and healthcare facilities / municipal, government and other public buildings.



Product Overview:

  • 2 Lever designs, Dane and Quantum; 7 functions.
  • 5 finishes: Bright Brass, Satin Brass, Oil Rubbed Bronze, Bright Chrome, Satin Chrome.
  • UL/cUL Listed for 1 1/2 hour B label door.
  • Nonhanded tubular chassis, through-bolted through the latch.
  • Integrated knob\lever, rose and chassis assembly permits easy "3 step" installation.
  • Lever design meets ADA requirements.



Technical Specifications:

  • Door Thickness: w-Series locksets accommodate door thicknesses of 1-3/8” to 1-3/4” standard.
  • Backset: Universal 2-3/8” — 2-3/4” UL Listed label latch is standard.
  • Mechanism: Cold rolled steel, zinc plated and chromate coated for rust resistance.
  • Attachment: Outside knob/lever, rose and chassis one single assembly. Inner mechanism secured to outer mechanism with two through-bolt screws through a steel mounting plate. Snap-on inner rose conceals screw heads. Knob/lever mounts over knob/lever retainer.
  • Handing: Non-handed. May be used in right hand or left hand doors swinging in or out.
  • Cylinders: Furnished with solid brass plug and housing, drilled with 6-pin chambers, pinned in 5 unless otherwise specified.
  • Levers (handles): Hana and Elite knobs and Dane levers available with 6 or 7-pin small format interchangeable cores. Furnished with two nickel silver keys standard.
  • Keyways: ”G” keyway standard on standard cylinders. ”A” keyway standard on I/C core cylinders. Available with some optional keyways.
  • Trim: Available with Hana and Elite knob styles and Dane and Quantum lever handle styles. See individual designs shown on pages 5 and 6 for details.
  • Latches: 1/2” bolt projection. UL standard. Furnished standard with a universal 2-3/8” – 2-3/4” backset with a 1-1/8” x 2-1/4” faceplate. Optional 1-1/8” x 2-1/4” square or round corner latch front available.
  • Strikes: 2-3/4” x 1-1/8” T-strike standard. ANSI 4-7/8” x 1-1/4” or 2-1/4” full lip strikes available. Consult Options and Accessories section.
  • Screws: Furnished with combination wood/machine screws for use on wood or metal doors or frames.
  • ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.
  • UL: 1-1/2 hour B label doors.
  • Meets ADA requirements. Specially designed for barrier free application.
  • Conforms with ANSI A156.2. Series 4000, Grade II Exceeds 800,000 Cylces. Meets A117.1 Accessibility Code.



In the Box:

  • Keyed, Storeroom, Classroom, Passage and Privacy Leversets:
    - Two Levers (one for each side of the door).
    - Strike Plate (mounted on the Jamb across from the strike).
    - Mounting screws.
    - Tubular latch with attached mortise plate.
  • Entrance/Keyed levers also include keys. Larger orders keyed alike may not have keys included with every entrance knobset.
  • Dummy leversets / single:
    - One knob and rosette to be surface mounted to the door.
    - Mounting screws.
