Description

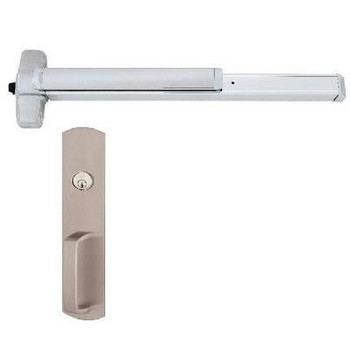

Von Duprin 99L-NL Rim Exit Device with Night Latch Lever Trim
Von Duprin 99L-NL exit device with 996L-NL night latch lever trim. 98/99 exit devices with modern touchbar styling for heavy traffic applications. Device with night latch lever trim function-key retracts latch.
CHECK FOR AVAILIBILITY ON FINISH AND FUNTIONS *
Product Overview
- Exit device with lever trim.
- With 996L-NL night latch lever trim
- Rim cylinder not includced
- For all types of single and double doors with mullion
- Covers stock hollow metal doors with 86 or 161 cutouts on single doors
- Strike- 299 – Dull Black.
- Dogging Feature- Hex key dogging standard.
- Latch Bolt-Deadlocking 3/4“ throw.
Technical Specifications
- UL listed for Panic Exit
- ANSI A156.3 – 2001 Grade 1.
- Available with EL (Electric Latch Retraction) option. The EL feature allows for the remote unlatching of exit devices.The EL option does not include the power transfer from door to frame, the power supply, or the control operator . Available in 3" size only
- Device Centerline from Finished Floor – 39-13/16”, 39-11/16” with mullion
- Center Case Dimensions- 8"x 2-3/4”x 2-3/8"
- Mechanism Case Dimensions- 2-1/4" x 2-1/4"
- Projection Pushbar Neutral – 3-13/16", Pushbar Depressed – 3-1/16"
- Available as a special order in other finishes and with RX,LX, or SS swithches.
- Please call us and we will quickly arrange your special order!
