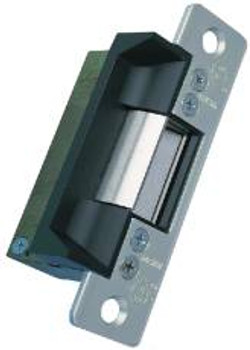

Adams Rite Ultraline 74R1 Series Electric Release

ADAMS RITE ULTRALINE 74R1 SERIES ELECTRIC RELEASE

Semi-mortised strike for rim exit devices having 3/4" Pullman-type bolts without auxillary bolts

• Strike opening 5/8" adjustable x 1-7/16" x 9/16" deep
• Strike accepts Pullman bolt of exit devices without deadlocking bolts
• Mounting Plate/Housing: measures 1-3/4" x 9" 1/16" deep
• Bolt retainer jaw is stainless steel
• Case: approximately 1" x 3-3/8" x 1-1/16" deep
• Made of zinc-aluminum alloy
• Provides electrical remote control, allowing door to open without activation of the exit device
•   Non-handed, ultra compact, stainless steel split-jaw
• Over 2400 lbs. of holding force
• Equipped with quick connect plug-in type connector
• AC/DC, 12, 16 or 24 Volts
• Grade 1
• Standard finish in Ritecoat Epoxy to match Clear Anodized
• Field selectable at time of installation
• Opens electrically under 35 lbs. of preload
• Replaces for burglary resistance (ULF 1034)
